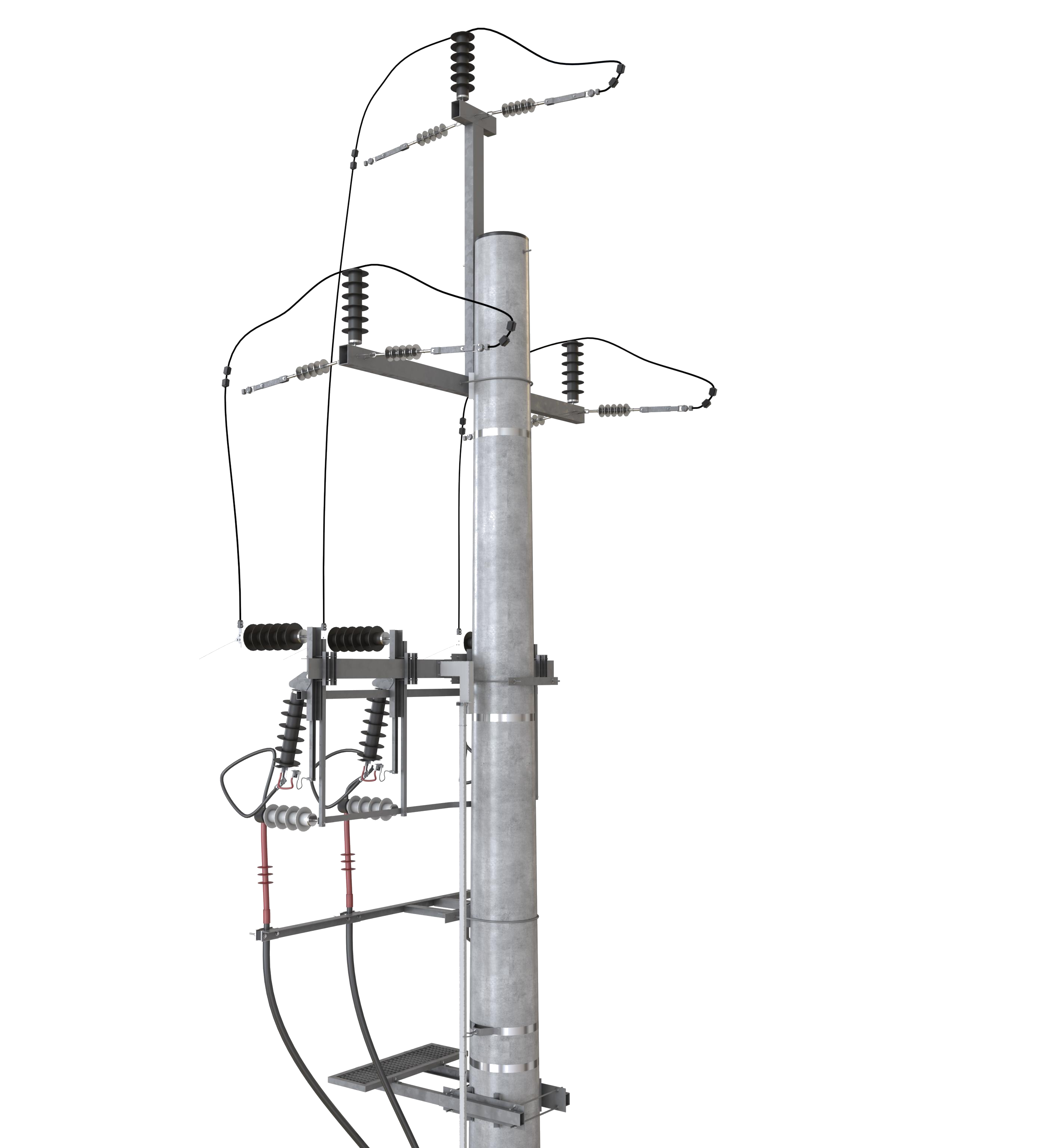

Prestress Concrete Poles
Prestress Concrete Pole features a constant-wall-thickness tapered structure with an annular cross-section, perfectly adapted to the stress characteristics of power lines. Moulded by the centrifugal process, it is a reinforced concrete structure with a concrete strength grade of ≥40 MPa. Boasting light weight, low wind resistance and excellent mechanical properties, it fully meets the application requirements of power transmission and distribution projects.
Benefits of Prestressed Concrete Poles
Maintenance-Free Operation
Resistant to insects, fire, woodpecker damage, rot, and corrosion, delivering long-term reliability with zero routine upkeep.
High Strength
Manufactured with premium 50MPa concrete, ensuring outstanding structural integrity and load-bearing performance for tropical climate conditions.
Quick-Connect Design
A comprehensive range of accessories supports fast, reliable bolted connections, adapting to diverse project requirements with ease.
Self-Supporting Structure
Eliminates the need for guy wires, reducing installation footprint and optimizing space utilization in any terrain.
Application
Technical Parameter

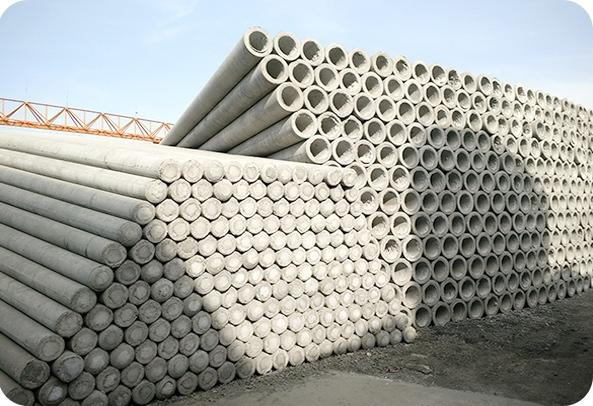

Jianhua Holdings manufactures a full range of prestressed spun concrete poles engineered for demanding utility and infrastructure applications. Our poles are produced using the centrifugal spinning method — the same process used by leading pole manufacturers worldwide — in which concrete is spun at high velocity to achieve maximum density, minimal porosity, and a smooth hollow core.
Standard specifications (customizable upon request):
● Lengths: 8m to 30m (above-grade heights configurable per project)
● Cross-section: Circular hollow (spun cast); tapered or uniform profiles available
● Concrete grade: C60 and above
● Prestressing: Pre-tensioned high-strength steel wire strand
● Taper rate: Uniform taper of 0.15–0.18 inch/foot (3.8–4.6 mm/300mm) for standard tapered poles
● Surface finish: Standard mold finish; custom finishes available on request
● Standards compliance: GB/T 4623, IEC, and customer-specified international standards
Available Pole Types

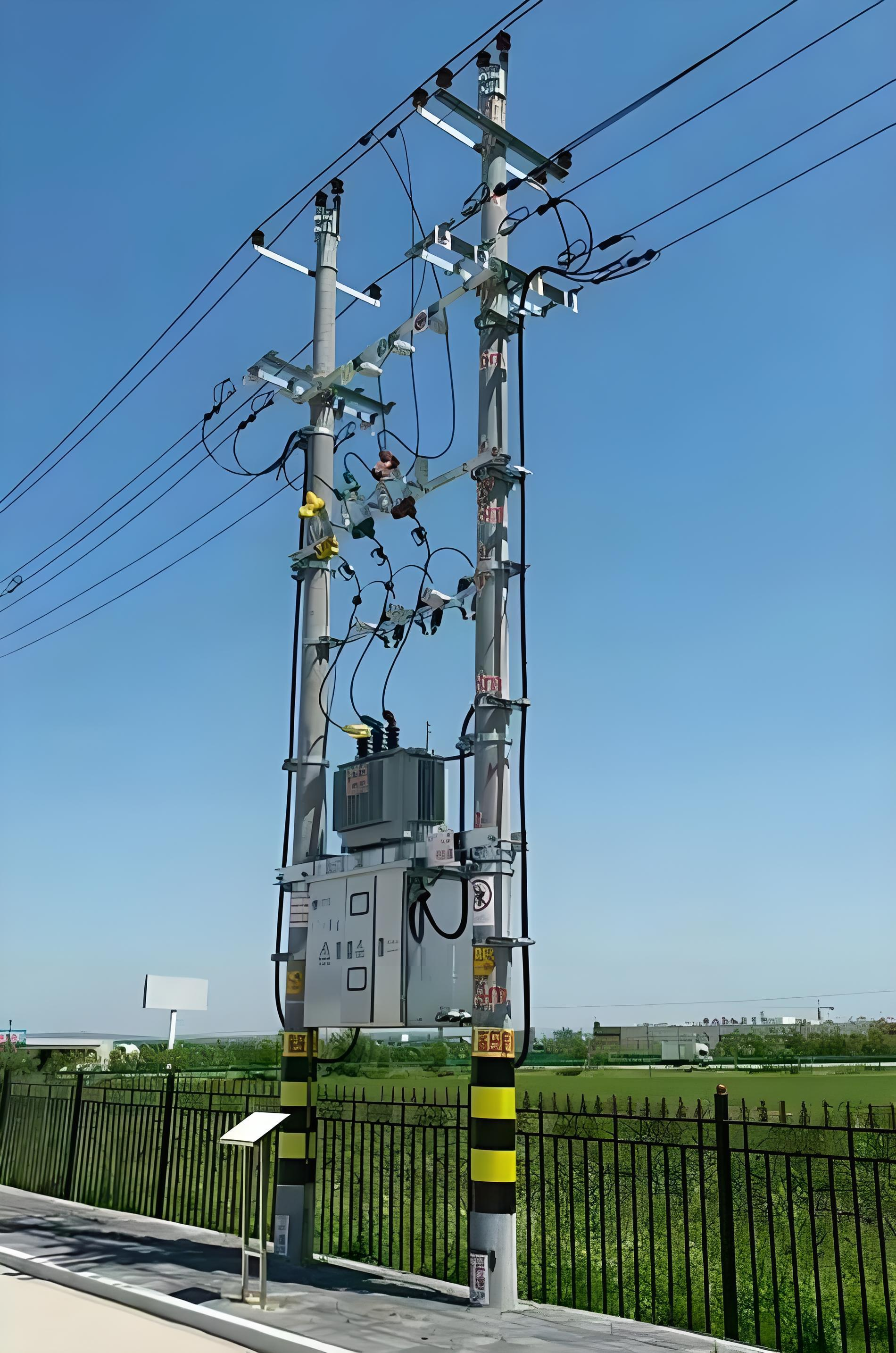

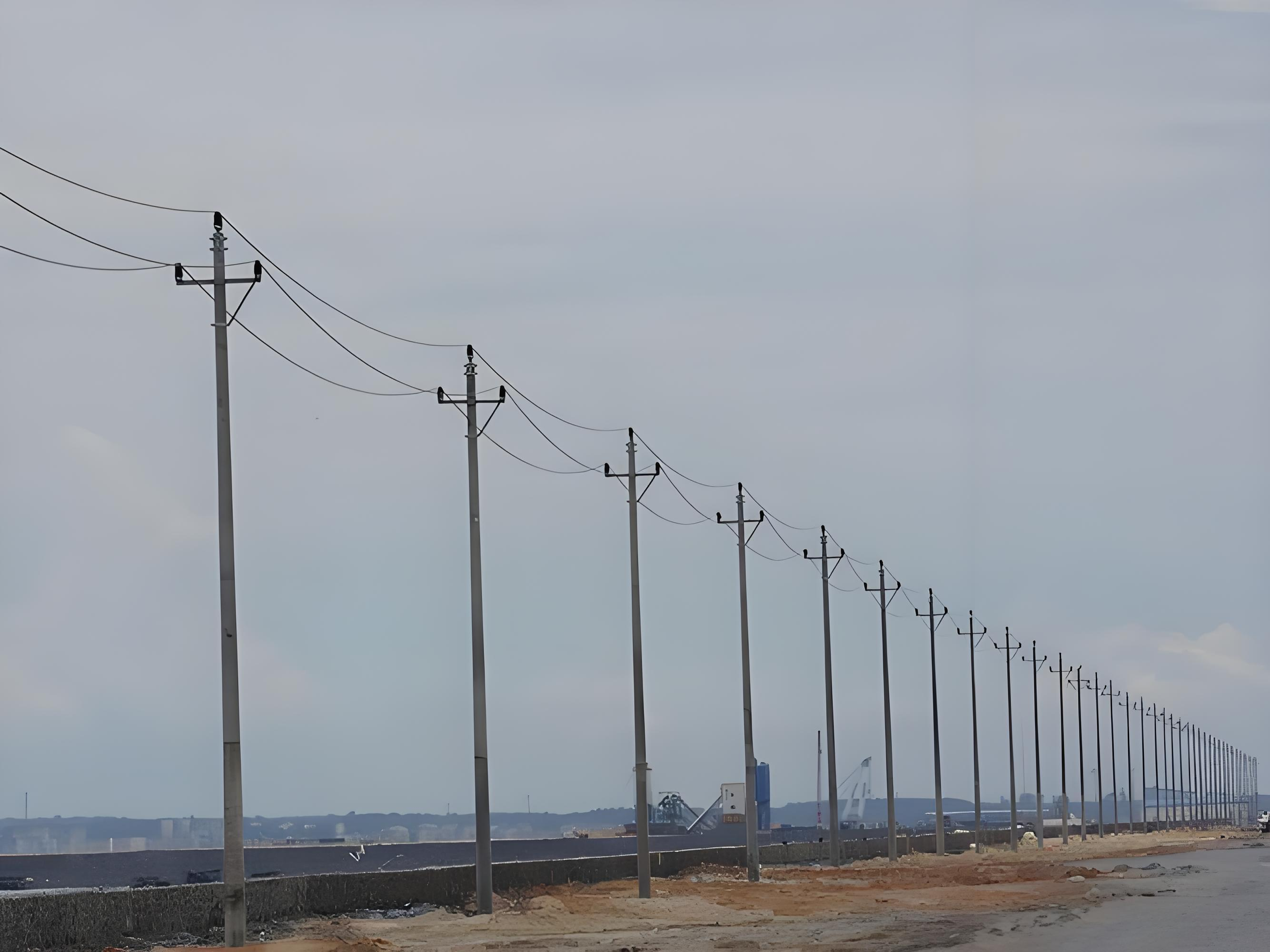

Power Transmission and Distribution PolesDesigned to carry medium and high-voltage overhead power lines, our utility-grade prestressed concrete poles deliver exceptional load-bearing capacity across a wide range of terrain and climate conditions. Available in single-circuit and double-circuit configurations with provisions for grounding conductors and internal hollow raceways for cable management.
Street Lighting and Urban Infrastructure PolesJianhua's prestressed concrete lighting poles combine structural performance with aesthetic flexibility. Suitable for motorway lighting, urban boulevard installations, park and plaza lighting, and decorative street furniture applications. Available in a range of tapers and heights to satisfy both functional load requirements and municipal design codes.
Telecommunications and Signal PolesPurpose-built for telephone line support, fiber optic cable routing, CCTV mounting, traffic signal support, and railway signaling infrastructure. The hollow core design simplifies internal cabling and eliminates the need for external conduit in most applications.
Railway Electrification PolesEngineered to support overhead catenary and contact wire systems for electrified rail networks. Designed to resist the dynamic lateral loads generated by high-speed rail operations, with full consideration of handling, transportation, and erection stresses as required by railway infrastructure standards.
Specialty and Custom-Engineered PolesJianhua's engineering team designs and manufactures poles to meet non-standard project specifications, including: extra-long poles for high-clearance spans, poles for coastal and high-salinity environments, and poles for seismic-zone applications.
Why Specify Jianhua Prestressed Concrete Poles
China's Largest Concrete Products GroupJianhua Holdings Group was founded in 1992 and has grown over 30 years into China's largest comprehensive service provider of concrete products and technology. The group operates 70+ production bases nationally, employs more than 30,000 people, and maintains 300+ market service outlets worldwide.
Industry-Leading R&D CapabilityJianhua holds the only National Enterprise Technology Center in China's concrete products industry, alongside recognition as one of the first-batch Residential Industrialization Bases designated by the national government. Our engineering teams work continuously on prestressing technology, concrete mix optimization, and manufacturing process improvement to maintain product performance leadership.
Global Project ExperienceJianhua prestressed products have been specified and installed on major infrastructure projects across Southeast Asia, the Middle East, South Asia, and beyond. Current operations include newly established manufacturing facilities in Indonesia and the UAE — bringing our production capabilities closer to key international markets. Our engineering consultants are experienced in adapting product specifications to international standards including IEC, BS, ASTM, and locally applicable national codes.
Full Industrial ChainUnlike trading companies or specialized pole manufacturers, Jianhua Holdings provides the complete supply chain: raw materials sourcing, concrete products manufacturing, equipment and mold production, installation technical support, and logistics. This vertical integration enables tighter quality control, shorter lead times, and more competitive pricing than multi-supplier procurement.
Top 3 Private Building Materials Enterprises in ChinaRanked among the Top 100 Private Building Materials Enterprises in China and recognized with multiple national industry honors, Jianhua is a named supplier to major state infrastructure programs.
Quality Assurance
Every Jianhua prestressed concrete pole is manufactured under a documented quality management system covering:
● Raw material incoming inspection (cement, aggregates, prestressing strand, steel components)
● Concrete mix design verification and batch-by-batch slump and strength testing
● Dimensional inspection: length, diameter, taper, wall thickness● Prestress force verification and wire positioning checks
● Load testing: bending load tests conducted in accordance with applicable national and international standards
● Visual and surface defect inspection
● Traceability: each pole is marked with production batch, date, and specification for full lifecycle traceability
Frequently Asked Questions
What is the difference between a prestressed concrete pole and a reinforced concrete pole?
A reinforced concrete (RC) pole contains passive steel reinforcing bars that provide tensile resistance after cracking occurs. A prestressed concrete pole contains high-strength steel strand or wire that is tensioned before casting, placing the concrete under permanent compression. This precompression prevents cracking under normal service loads, resulting in a stiffer, more crack-resistant, less permeable, and longer-lasting structural member than an ordinary RC pole of equivalent size.
What cross-section shapes are available for prestressed concrete poles?
The most common form is the circular hollow (spun) pole, produced by centrifugal casting. This cross-section provides equal strength in all horizontal directions — important for poles subject to wind loads from variable directions. Rectangular, square, hexagonal, and octagonal solid cross-sections can also be produced using the long-line pretensioning method and are typically used for shorter pole lengths (up to approximately 12m).
How are prestressed concrete poles installed?
The standard installation method is direct burial (direct embed) in an augered or excavated hole, with the pole base embedded to a depth determined by design calculations based on pole height, design loads, and soil conditions. Concrete backfill or compacted granular backfill is typically used to secure the pole base. For marine or soft-ground applications, pile-supported foundation systems may be used. Jianhua's technical team can provide installation guidance and specification support.
Can Jianhua produce poles to international standards (IEC, ASTM, BS)?
Yes. Jianhua's engineering team designs products to meet customer-specified international standards. We have experience producing poles for projects in countries with IEC, BS, Australian Standard, and Gulf/GCC national standards requirements. Please provide your project specification documents for a technical review and quotation.
What is the minimum order quantity for export supply?
Minimum order quantities vary by pole type, specification, and destination. Please contact our international sales team to discuss your project requirements. We supply both container-load quantities for smaller projects and bulk vessel shipments for large infrastructure programs.
What is the typical lead time from order to delivery?
Lead times depend on order volume, specification complexity, and destination port. Standard production and delivery lead times for export orders are typically discussed and confirmed at the quotation stage. Our 70+ production bases and logistics network provide significant flexibility to meet project schedule requirements.
